Supercnc Heavy Duty 5 10 20 Ton Pipe Tank Weld Rotatoring Roller Stand Self Adjustable Welding Turning Roller

Product Description

Specication and model				ZT-5T	ZT-10T	ZT-20TZ	T-30T	ZT-40T	ZT-50T	ZT-60T	ZT-80T	ZT- 100T	ZT- 150T
(t)Load				5	10	20	30	40	50	60	80	100	150
Roller traln	Two pleces	Metal roller	Diameter(mm)	-	-	-	340	340	390	390	490	490	540
	Two pleces	Metal roller	Width(mm)	-	-	-	30	30	40	40	60	60	100
	One piece	Rubber roller	Diameter(mm)	225	250	300	350	350	400	400	500	500	550
	One piece	Rubber roller	Width(mm)	120	120	140	120	120	120	120	120	120	120
Tube struclure dlameler	Minimum(mm)			350	350	600	600	600	750	800	900	900	1000
Tube struclure dlameler	Maximum(mm)			2500	2500	4000	4500	4500	5000	5000	5500	5500	6000
Roller speed(mm)				6-60	6-60	6-60	6-60	6-60	6-60	6-60	6-60	6-60	6-60
Motor power(kw)				2×0.37	2×0.37	2×0.55	2×0.75	2×1.1	2×1.5	2×1.5	2×2.2	2×3	2×4
Speed regulation mode				Frequency control
Boundary dmengion(φ)	Length(mm)			主1595 从1450	主1885 从1750	主2165 从2125	主2410 从2410	主2410 从2410	主2600 从2600	主2600 从2600	主3020 从3020	主3020 从3020	主3420 从3420
	Width(mm)			主872 从392	主872 从392	主1010 从425	主1260 从550	主1290 从550	主1360 从590	主1360 从590	主1745 从760	主1770 从760	主1889 从1080
	Height(mm)			660	660	945	1125	1135	1135	1135	1400	1400	1640

Product Display

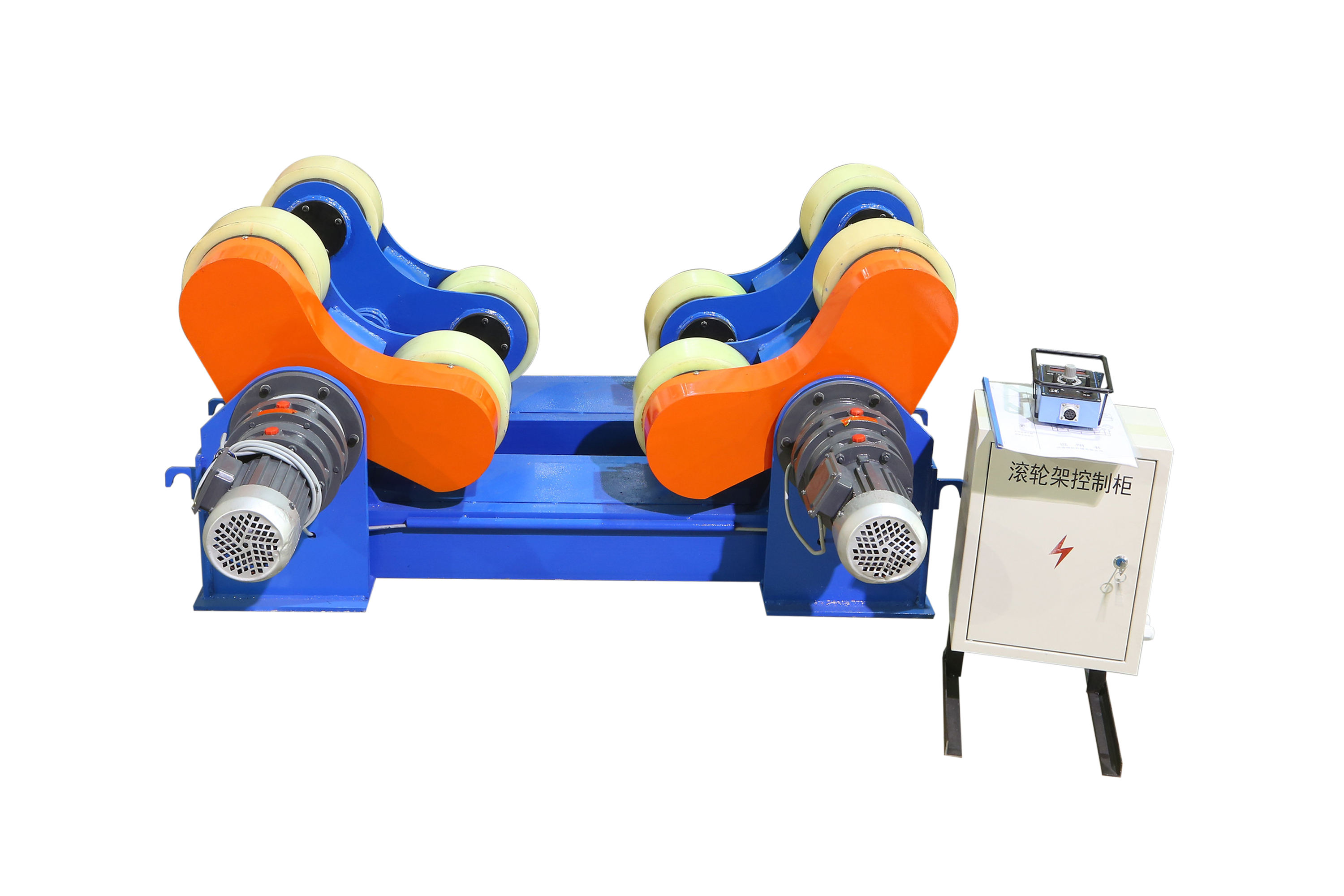

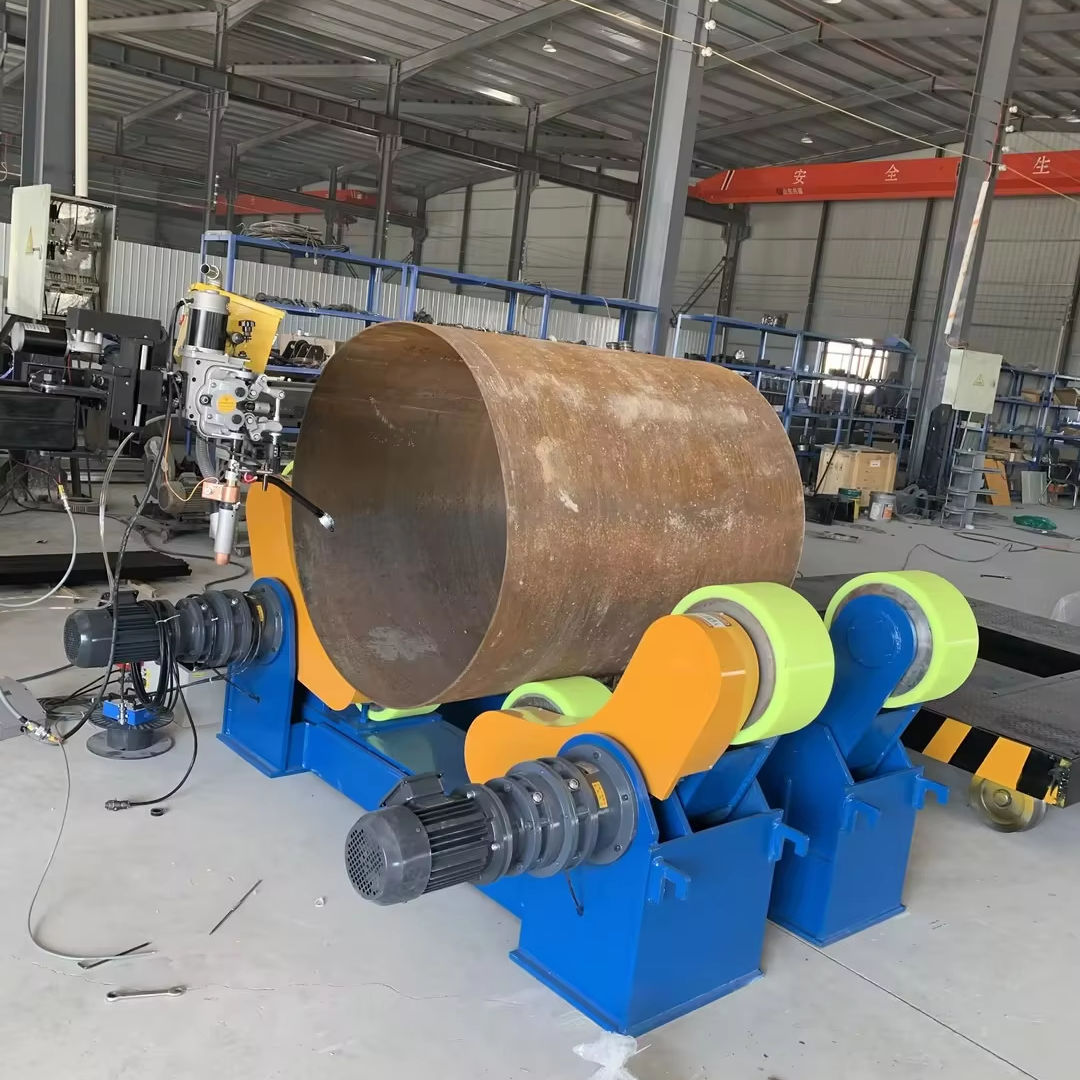

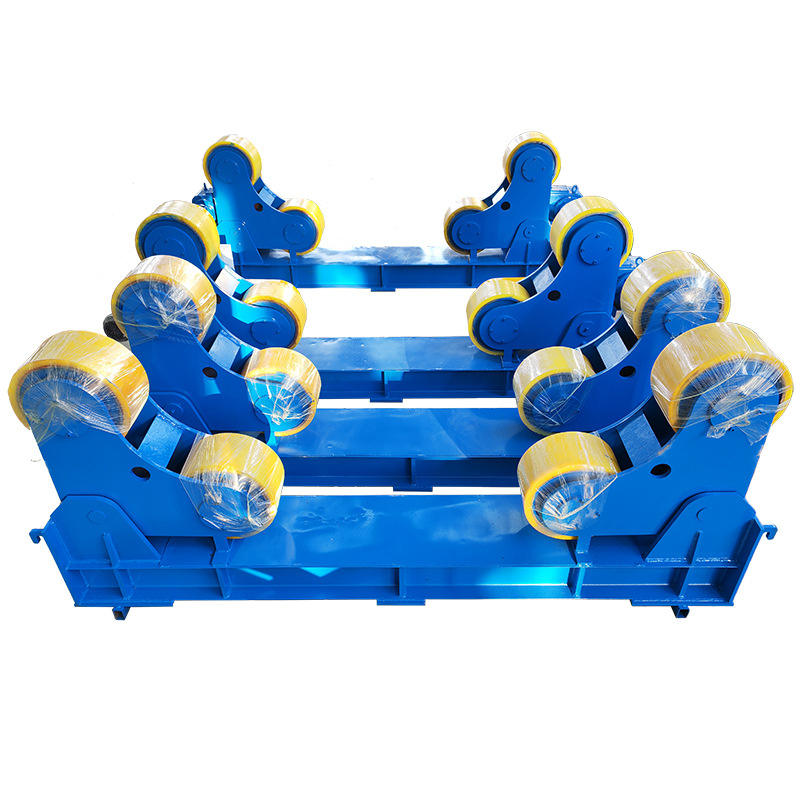

Self-adjustable welded rolle carier can adjust the angle of its swing arm to fit for the changes in workplece diameler.Under the mode of dual-motor driven,the rolle is divided into three types of ruber roller,stel wheel and rubber-steel whel;as for the control system,there are simulation or digital control types to be selected,and linkage control with other equipment is allowed.As a resut,the product is widely used in wind power,pressure vessel,petrochernistry,pipeline,boiler,welding repair and other industries.
